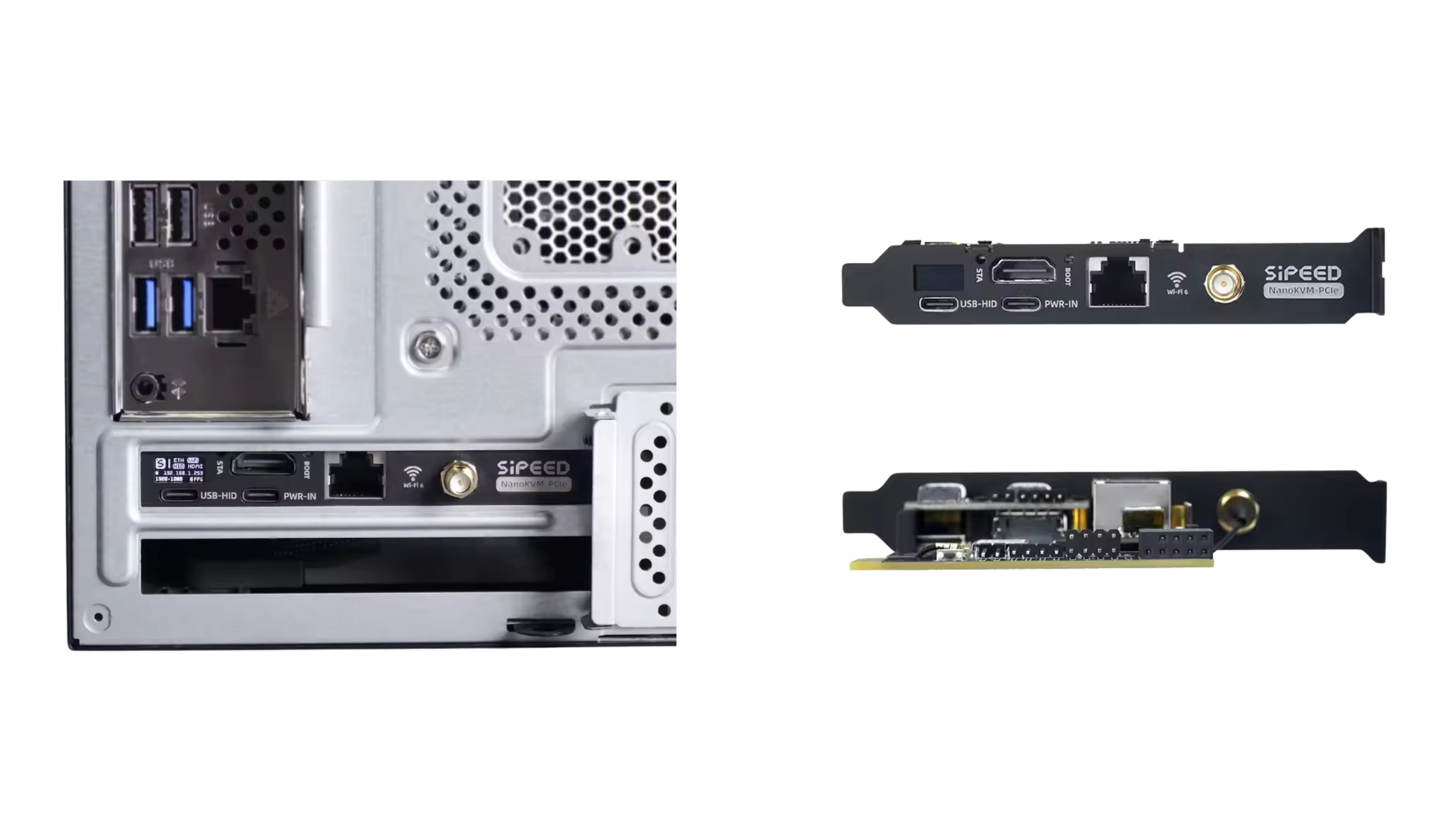

NanoKVM-PCle is a new form of NanoKVM, with a built-in PCle baffle that can be fixed inside the chassis, providing a better experience for desktop users.
NanoKVM-PCle adds optional WiFi and PoE functions based on NanoKVM-Cube; it has its own PCle slot and can draw power from the motherboard PCle slot; in ad-dition, the wired connection (ETH) is also more stable, meeting more professional needs.
NanoKVM-PCIe is a new form of NanoKVM, featuring a built-in PCIe bracket that can be securely installed inside a chassis, providing a better experience for desktop users.
Based on the NanoKVM-Cube, the NanoKVM-PCIe adds optional WiFi and PoE functionality; it comes with a PCIe slot that can draw power from the motherboard's PCIe slot. In addition, the wired connection (ETH) is more stable and meets more professional requirements.

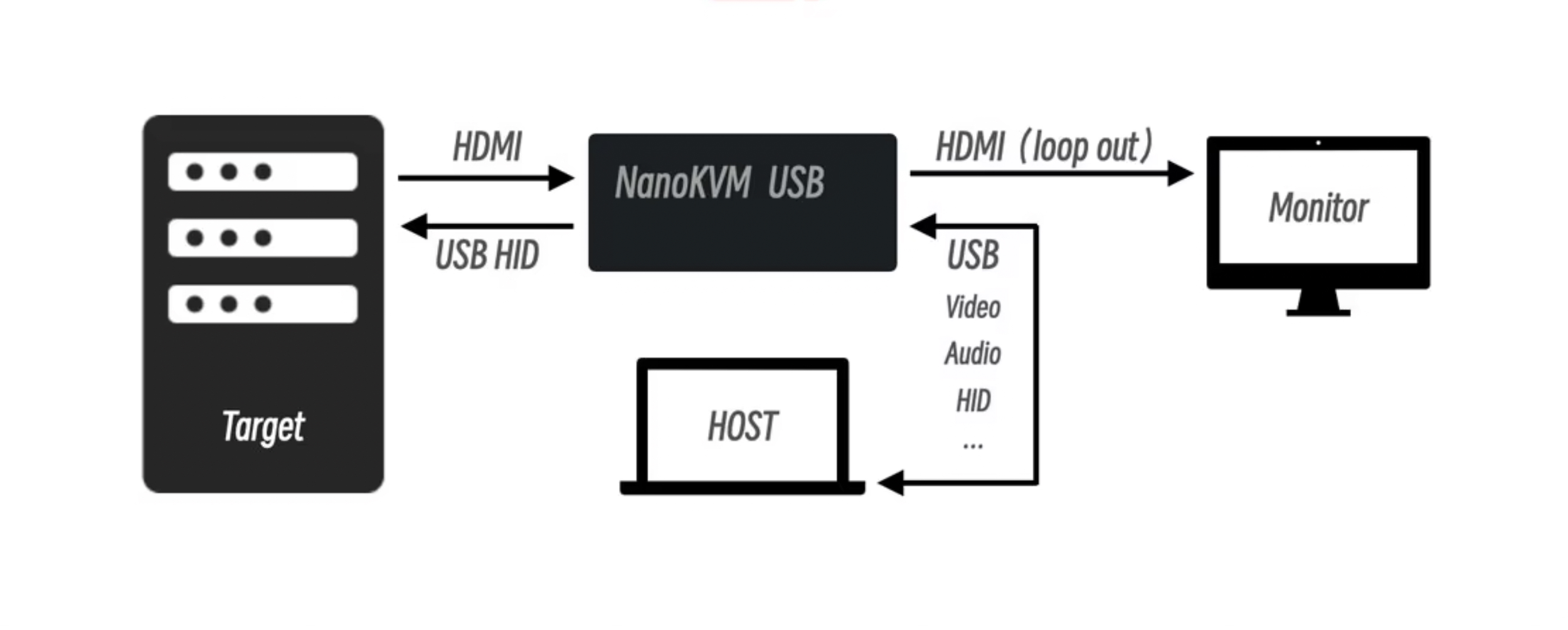

The NanoKVM series products include an HDMI input interface, which can be recognized by computers as a display to capture computer graphics. It features a USB 2.0 interface that connects to the computer host and can be recognized as HID devices such as keyboards, mice, and touchpads. It also utilizes extra storage space on the TF card, which is mounted as a USB drive. All models are equipped with a 100 Mbps Ethernet port for network transmission of video and control signals. The PCIe version of NanoKVM comes standard with a 0.49-inch OLED display to show various status information in real-time, including WiFi network configuration and other information.
Server Management: Used for real-time monitoring of servers, obtaining the operating status of servers, and controlling them.
Remote Power&Desktop: NanoKVM frees itself from the limitations of having the host connected to the network and dependent on system software. As an external hardware solution, it directly provides remote control functionality.
Remote Installation: NanoKVM simulates a USB drive, allowing users to mount installation images and install operating systems, as well as access BIOS settings for the computer.
Remote Serial Port: NanoKVM exposes two sets of serial ports that can work in conjunction with IPMI or connect to other development boards for web-based serial terminal interaction. Additionally, users can expand with more accessories as needed.
Dual Computer Collaborative Operation.
